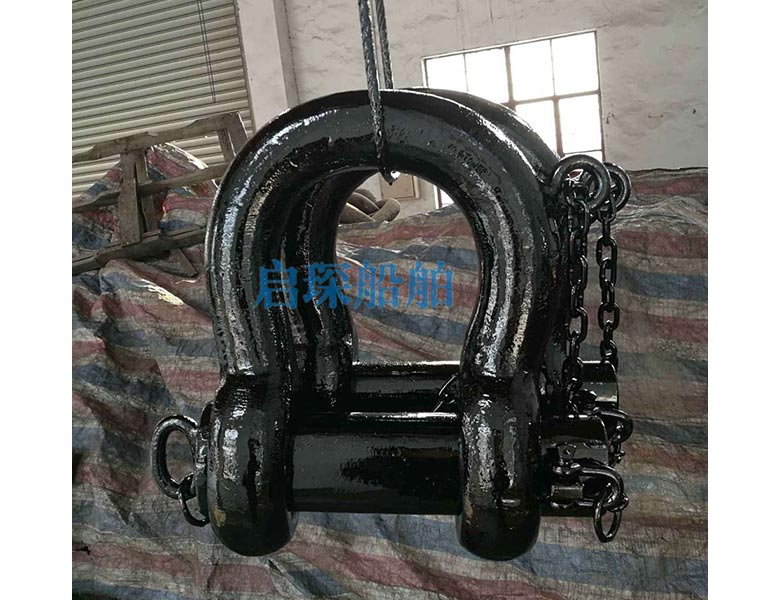

Buoy Shackles B

Add time：2021-12-15 15:34:02 Number of views：477

Function introduction

Nominal Dia. (mm)	DI (mm)	D2 (mm)	L (mm)	w (mm)	N (mm)	R (mm)	B (mm)	S (mm)	T (mm)
36	60	56	375	262	113	29	188	80	53
40	62	58	384	266	118	30	188	83	56
42	63 .	59 .	394	268	125	32	188	85	59
44	66	62	401	274	130	33	188	88	62
46	69	64	410	278	136	35	188	90	64
48	72	67	429	294	141	36	200	92	67
50	75	70	440	300	148	38	200	95	70
52	78	73	460	316	13	39	213	98	73
54 .	81 .	76 1	472	322	161 .	41	213	101	76 .
56	84	78	491	336	165	42	225	104	78
58	87	81	503	342	172	44	225	108	81
60	90	84	513	348	177	45	225	111	84 .
62	93	87	525	354	184	47	225	115	87
64	96	90	556	380	189	48	250	119	90
	99	92	566	384	195	50	250	122	92
68	102	95	576	390	200	51	250	125	95
70	105	98	586	396	207	53	250	127	98
72	108	101	596	402	212	54	250	130	101 .
74	111	104	607	408	219	56	250	133	104
76	113	106	615	412	223	57	250	137	106
78 .	116	109 .	625	418	230 .	59	250	140	109
80	118	111	635	422	236	60	250	144	112
82	120	113	645	426	243	62	250	149	115
85 .	123 .	116	657	432	251 .	64	250	153	119
88	128	119	671	438	259	66	250	158	123
91	131	123	685	446	257	68	250 II 164		127
