Four-roller fairlead-Type BB
Add time：2022-01-19 10:47:56
Number of views：443

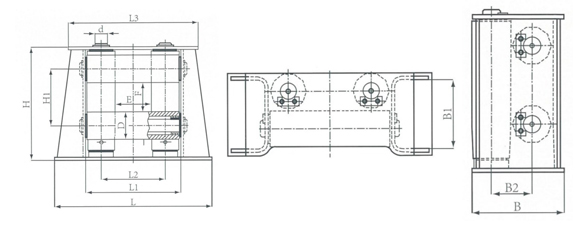

| Steel wire dia. |
Nylon wire dia. |
E |
F |
D |
d |
L |
L1 |
L2 |
L3 |
B |
B1 |
B2 |
H |
H1 |
Weight Kg |
| 19.5 |
36 |
200 |
150 |
100 |
40-0.5 |
644 |
416 |
300 |
544 |
238 |
194 |
108 |
508 |
250 |
155 |
| 22.5 |
40 |
200 |
150 |
120 |
50-0.5 |
728 |
456 |
320 |
608 |
280 |
232 |
128 |
552 |
270 |
239 |
| 26.0 |
45 |
200 |
180 |
130 |
55-0.5 |
776 |
480 |
330 |
646 |
304 |
250 |
138 |
606 |
310 |
306 |
| 32.0 |
70 |
220 |
180 |
150 |
65-0.5 |
880 |
540 |
370 |
730 |
346 |
288 |
158 |
670 |
330 |
450 |
| 34.5 |
80 |
240 |
200 |
160 |
70-0.5 |
940 |
580 |
400 |
780 |
370 |
308 |
168 |
710 |
360 |
576 |
| 37.5 |
85 |
240 |
200 |
180 |
80-0.5 |
1030 |
620 |
420 |
850 |
417 |
345 |
190 |
770 |
380 |
756 |
| 43.0 |
95 |
260 |
210 |
200 |
90-0.5 |
1136 |
686 |
460 |
936 |
459 |
385 |
210 |
820 |
410 |
987 |
| 52.0 |
100 |
260 |
220 |
230 |
100-0.5 |
1256 |
746 |
490 |
1026 |
521 |
445 |
240 |
910 |
450 |
1370 |
| 60.5 |
- |
300 |
240 |
260 |
120-0.5 |
1430 |
850 |
560 |
1170 |
590 |
500 |
270 |
1000 |
500 |
2008 |
| 68.0 |
- |
320 |
250 |
320 |
150-0.5 |
1690 |
990 |
640 |
1370 |
714 |
620 |
330 |
1130 |
570 |
3352 |
