| 钢索直径 Steel wire dia. |
尼龙绳直径 Nylon wire dia. |

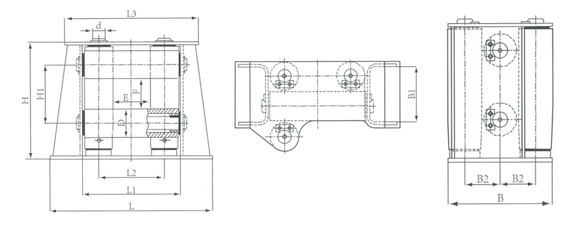

E | F | D | d | L | L1 | L2 | L3 | B | B1 | B2 | H | H1 | 重量 Weight Kg |
| 19.5 | 36 | 200 | 150 | 100 | 40-0.5 | 644 | 416 | 300 | 544 | 324 | 194 | 108 | 508 | 250 | 182 |
| 22.5 | 40 | 200 | 150 | 120 | 50-0.5 | 728 | 456 | 320 | 608 | 384 | 232 | 128 | 552 | 270 | 282 |
| 26.0 | 45 | 200 | 180 | 130 | 55-0.5 | 776 | 480 | 330 | 646 | 415 | 250 | 138 | 606 | 310 | 360 |
| 32.0 | 70 | 220 | 180 | 150 | 65-0.5 | 880 | 540 | 370 | 730 | 475 | 288 | 158 | 670 | 330 | 532 |
| 34.5 | 80 | 240 | 200 | 160 | 70-0.5 | 940 | 580 | 400 | 780 | 507 | 308 | 168 | 710 | 360 | 675 |
| 37.5 | 85 | 240 | 200 | 180 | 80-0.5 | 1030 | 620 | 420 | 850 | 571 | 345 | 190 | 770 | 380 | 895 |
| 43.0 | 95 | 260 | 210 | 200 | 90-0.5 | 1136 | 686 | 460 | 936 | 632 | 385 | 210 | 820 | 410 | 1169 |
| 52.0 | 100 | 260 | 220 | 230 | 100-0.5 | 1256 | 746 | 490 | 1026 | 723 | 445 | 240 | 910 | 450 | 1636 |
| 60.5 | - | 300 | 240 | 260 | 120-0.5 | 1430 | 850 | 560 | 1170 | 815 | 500 | 270 | 1000 | 500 | 2384 |
| 68.0 | - | 320 | 250 | 320 | 150-0.5 | 1690 | 990 | 640 | 1370 | 997 | 620 | 330 | 1130 | 570 | 4021 |
