● 材料：优质碳钢锻制
Forged Carbon Steel
● 2 倍工作负荷的验证
2 times the Proof Load is 100% tested

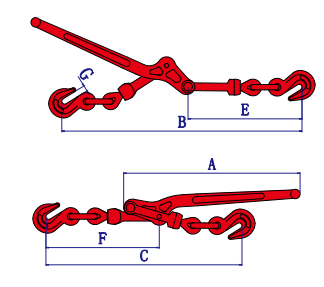

| 链条规格 Size Of Chain | 尺寸 (毫米) Dimensions(mm) | 工作负荷(吨） W.L.L. ( T) |
破断负荷(≧吨 ) M.B.S. ( ≧T ) | 重量(公斤) Weight ( KG ) |
||||||
| 英寸in | 毫米mm | A | B | C | E | F | G | |||
| 1/4 | 6 | 300.0 | 445.0 | 375.0 | 215.0 | 209.0 | 9.5 | 1.18 | 4.13 | 1.76 |
| 5/16-3/8 | 8-10 | 413.0 | 570.0 | 460.0 | 265.0 | 260.0 | 12.7 | 2.45 | 8.63 | 3.69 |
| 3/8-1/2 | 10-13 | 475.7 | 695.0 | 565.0 | 325.0 | 324.0 | 16.8 | 4.18 | 15.0 | 5.68 |
| 1/2-5/8 | 13-16 | 553.0 | 848.0 | 680.0 | 395.0 | 391.0 | 18.6 | 5.90 | 20.9 | 9.52 |
