型号 Type |
缆绳工作负荷 Wire W.L.(Kn) |

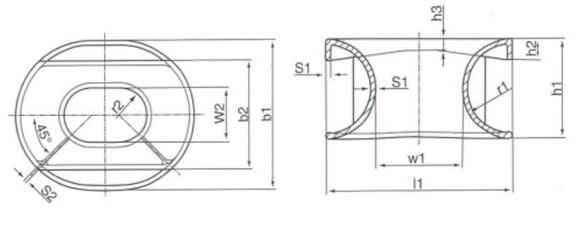

b1 | b2 | h1 | h2 | h3 | l1 | r1 | r2 | s1 | s2 | w1 | w2 | 重量 Weight (Kg) |
|
A2 | 20 | 315 | 225 | 200 | 70 | 25 | 360 | 100 | 57.5 | 12 | 6 | 160 | 115 | 26 | |
A3 | 30 | 390 | 275 | 250 | 75 | 32 | 450 | 125 | 70 | 14 | 7 | 200 | 140 | 42 | |
A5 | 50 | 480 | 340 | 300 | 80 | 38 | 550 | 150 | 90 | 16 | 8 | 250 | 180 | 74 | |
A8 | 80 | 585 | 415 | 360 | 90 | 45 | 680 | 180 | 112.5 | 18 | 9 | 320 | 225 | 120 | |
A12 | 125 | 710 | 500 | 440 | 110 | 55 | 840 | 220 | 135 | 20 | 10 | 400 | 270 | 185 | |
A20 | 200 | 840 | 595 | 520 | 130 | 65 | 1020 | 260 | 160 | 22 | 11 | 500 | 320 | 285 | |
A32 | 320 | 1100 | 800 | 700 | 150 | 80 | 1300 | 350 | 200 | 35 | 20 | 600 | 400 | 795 |
