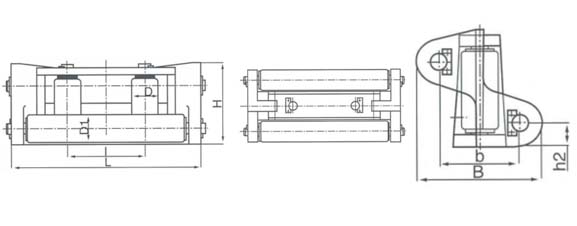

滚筒直径 Roller dia.D |
水平滚筒 Horizontal roller dia.D1 |
适用钢索直径 Suitable steel wire dia. φ |
L | B | H | b | h1 | h2 | l | 螺孔直径 Screw hile dia.d |
|||||
A型 A Type |
B型 B Type |
||||||||||||||
100 | 85 | 19.5 | 540 | 340 | 240 | 240 | 250 | 220 | 50 | 200 | 22 | ||||
150 | 120 | 26.0 | 760 | 460 | 340 | 340 | 340 | 320 | 65 | 290 | 26 | ||||
200 | 150 | 37.5 | 980 | 580 | 430 | 440 | 430 | 410 | 80 | 380 | 32 | ||||
250 | 100 | 48.5 | 1220 | 740 | 520 | 550 | 540 | 500 | 110 | 480 | 39 | ||||
300 | 250 | 56.0 | 1460 | 900 | 620 | 675 | 650 | 590 | 135 | 580 | 39 |
