![](../pictures/20220121150730390.jpg)
型号 (mm) |
适用链径 (mm) |

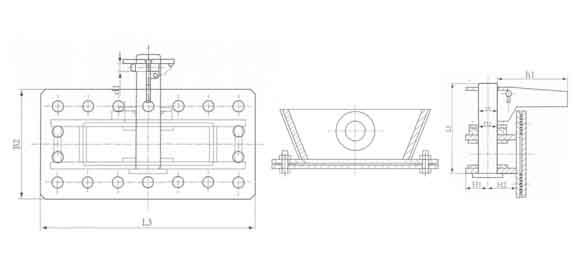

L1 | L3 | B2 | H1 | H2 | D1 | D2 | h1 | d1 | 重量 (Kg) |
|
52 | 50-52 | 384 | 460 | 238 | 63 | 82 | 54 | 57 | 190 | 16 | 40.5 | |
56 | 54-56 | 420 | 486 | 246 | 69 | 88 | 58 | 61 | 194 | 16 | 48.0 | |
60 | 58-60 | 448 | 504 | 254 | 74 | 94 | 62 | 65 | 198 | 16 | 53.9 | |
64 | 62-64 | 478 | 524 | 264 | 80 | 100 | 66 | 69 | 202 | 16 | 60.0 | |
68 | 66-68 | 504 | 542 | 272 | 84 | 107 | 70 | 73 | 207 | 16 | 70.8 | |
73 | 70-73 | 540 | 570 | 282 | 87 | 114 | 75 | 78 | 212 | 19 | 81.4 | |
78 | 76-78 | 576 | 594 | 292 | 95 | 122 | 80 | 83 | 217 | 19 | 92.8 | |
84 | 81-84 | 624 | 628 | 302 | 102 | 131 | 85 | 88 | 223 | 19 | 106 | |
90 | 87-90 | 670 | 660 | 316 | 110 | 140 | 90 | 93 | 230 | 19 | 128 | |
95 | 92-95 | 708 | 686 | 330 | 118 | 148 | 95 | 98 | 235 | 22 | 146 | |
102 | 98-102 | 762 | 724 | 346 | 128 | 158 | 100 | 103 | 242 | 22 | 188 | |
111 | 105-111 | 828 | 770 | 364 | 139 | 171 | 110 | 110 | 251 | 22 | 231 | |
120 | 114-120 | 892 | 810 | 386 | 150 | 184 | 120 | 123 | 260 | 22 | 274 |
型号 (mm) |
适用链径 (mm) |
L1 | L3 | B2 | H1 | H2 | D1 | D2 | h1 | d1 | 重量 (Kg) |
|
52 | 50-52 | 384 | 460 | 242 | 63 | 82 | 54 | 57 | 190 | 8 | 40.5 | |
56 | 54-56 | 420 | 486 | 252 | 69 | 88 | 58 | 61 | 194 | 8 | 48.0 | |
60 | 58-60 | 448 | 504 | 262 | 74 | 94 | 62 | 65 | 198 | 8 | 53.9 | |
64 | 62-64 | 478 | 524 | 270 | 80 | 100 | 66 | 69 | 202 | 8 | 60.0 | |
68 | 66-68 | 504 | 542 | 278 | 84 | 107 | 70 | 73 | 207 | 8 | 70.8 | |
73 | 70-73 | 540 | 570 | 288 | 87 | 114 | 75 | 78 | 212 | 8 | 81.4 | |
78 | 76-78 | 576 | 594 | 300 | 95 | 125 | 80 | 83 | 217 | 8 | 92.8 | |
84 | 81-84 | 624 | 628 | 310 | 102 | 133 | 85 | 88 | 223 | 10 | 106 | |
90 | 87-90 | 670 | 660 | 326 | 110 | 143 | 90 | 93 | 230 | 10 | 128 | |
95 | 92-95 | 708 | 686 | 342 | 118 | 154 | 95 | 98 | 235 | 10 | 146 | |
102 | 98-102 | 762 | 724 | 358 | 128 | 164 | 100 | 103 | 242 | 10 | 188 | |
111 | 105-111 | 828 | 770 | 376 | 139 | 179 | 110 | 110 | 251 | 10 | 231 | |
120 | 114-120 | 892 | 810 | 402 | 150 | 200 | 120 | 123 | 260 | 10 | 274 |
