![](../pictures/20220121150514850.jpg)

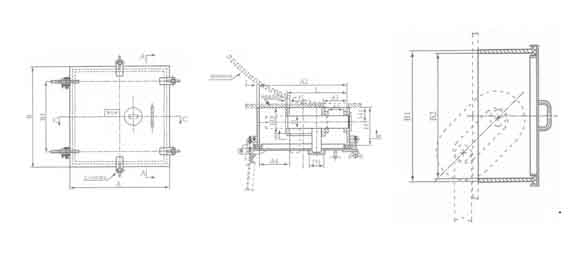

公称尺寸 (mm) |
适用于锚链直径 (mm) |
A | A1 | A2 | A3 | A4 | B | B1 | B2 | B3 | H | H1 | H2 | D | D1 | L | t | t1 | 重量 (Kg) |
||
52 | 50-52 | 466 | 102 | 400 | 68 | 146 | 398 | 346 | 332 | 250 | 175 | 63 | 110 | 54 | 80 | 266 | 14 | 20 | 85 | ||
56 | 54-56 | 501 | 112 | 435 | 74 | 146 | 486 | 434 | 420 | 300 | 180 | 70 | 125 | 58 | 90 | 301 | 14 | 25 | 114 | ||
60 | 58-60 | 541 | 122 | 475 | 80 | 163 | 516 | 464 | 450 | 300 | 185 | 75 | 135 | 62 | 95 | 326 | 14 | 25 | 127 | ||
64 | 62-64 | 546 | 137 | 480 | 84 | 173 | 546 | 498 | 480 | 400 | 220 | 82 | 140 | 66 | 95 | 330 | 14 | 25 | 143 | ||
68 | 66-68 | 568 | 144 | 500 | 88 | 176 | 572 | 516 | 504 | 400 | 230 | 86 | 150 | 70 | 95 | 339 | 16 | 25 | 177 | ||
73 | 70-73 | 604 | 148 | 536 | 94 | 187 | 608 | 558 | 540 | 400 | 246 | 90 | 168 | 75 | 95 | 364 | 16 | 25 | 221 | ||
78 | 76-78 | 638 | 162 | 570 | 102 | 197 | 644 | 596 | 570 | 450 | 248 | 94 | 168 | 80 | 95 | 388 | 16 | 25 | 225 | ||
84 | 81-84 | 698 | 168 | 630 | 108 | 210 | 688 | 636 | 620 | 450 | 250 | 102 | 185 | 85 | 100 | 434 | 16 | 28 | 236 | ||
90 | 87-90 | 730 | 178 | 668 | 116 | 225 | 740 | 686 | 670 | 500 | 280 | 110 | 200 | 90 | 100 | 462 | 18 | 28 | 302 | ||
95 | 92-95 | 770 | 188 | 700 | 124 | 257 | 780 | 730 | 710 | 500 | 288 | 110 | 200 | 95 | 100 | 457 | 18 | 28 | 335 | ||
102 | 97-102 | 824 | 188 | 750 | 132 | 276 | 784 | 730 | 710 | 500 | 315 | 130 | 210 | 100 | 100 | 498 | 22 | 28 | 395 | ||
111 | 105-111 | 886 | 222 | 810 | 142 | 286 | 786 | 730 | 710 | 500 | 370 | 150 | 260 | 110 | 110 | 531 | 24 | 30 | 604 | ||
120 | 114-120 | 906 | 248 | 830 | 156 | 286 | 786 | 730 | 710 | 500 | 380 | 170 | 270 | 112 | 110 | 566 | 24 | 36 | 620 |
