![](../pictures/20220121121058150.jpg)

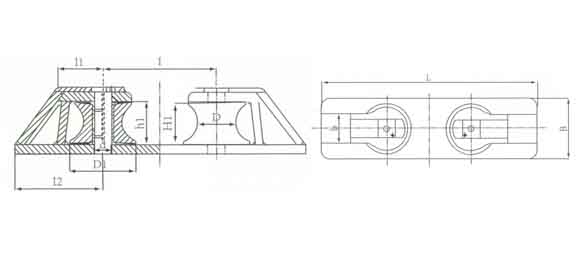

公称尺寸 | 适用缆索破断负荷 (KN) |
适用缆索直径 | 本体 | 滚轮 | 滚轮轴 | 重量 (kg) |
||||||||||||
钢索 | 合成纤维索 | L | B | l | l1 | l2 | b | h1 | D | D1 | H1 | |||||||
6x24 | 6x37 | |||||||||||||||||
75 | 23.3 | 7.4 | - | 12 | 400 | 150 | 150 | 80 | 125 | 75 | 70 | 75 | 120 | 64 | 22 | 18 | ||
100 | 52.5 | 11 | - | 18 | 530 | 200 | 200 | 105 | 165 | 100 | 92 | 100 | 160 | 86 | 32 | 41 | ||
125 | 93.4 | 15 | - | 24 | 650 | 250 | 250 | 126 | 200 | 125 | 108 | 125 | 200 | 102 | 40 | 76 | ||
150 | 145.8 | 18.5 | - | 30 | 780 | 300 | 300 | 150 | 240 | 150 | 126 | 150 | 240 | 120 | 50 | 132 | ||
200 | 246.6 | 24 | - | 40 | 1100 | 370 | 400 | 191 | 300 | 200 | 161 | 200 | 310 | 154 | 63 | 264 | ||
250 | 373.6 | 30 | - | 48 | 1240 | 470 | 500 | 239 | 370 | 240 | 191 | 250 | 400 | 184 | 75 | 498 | ||
300 | 472.7 | 33.5 | - | 56 | 1480 | 550 | 600 | 284 | 440 | 290 | 231 | 300 | 480 | 224 | 90 | 798 | ||
350 | 583.5 | 37.5 | 34.5 | 64 | 1690 | 640 | 690 | 322 | 500 | 340 | 251 | 350 | 560 | 244 | 100 | 1134 |
